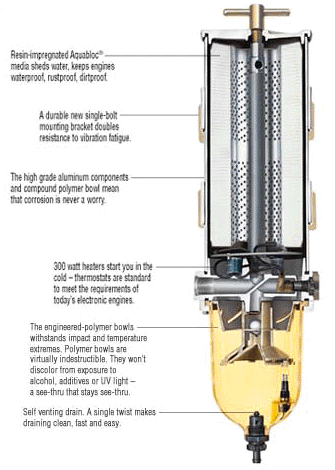

Racor Turbine Series Fuel Filter / Water Separators have been protecting engines from water, dirt, foulants and other contaminants for over 30 years using a patented three-stage process:
(1) Separation - The turbine centrifuge separates solids and ‘free’ water through centrifugal action. Although the turbine has no moving parts, over 30% of the contaminants are removed here.
(2) Coalescing - Smaller water droplets and solids coalesce on the specially designed conical baffle and fall to the collection bowl.
(3) Filtration - Engines benefit from near 100% water separation and fuel filtration with Racor’s proprietary Aquabloc water repelling media.
