ECO SERIES

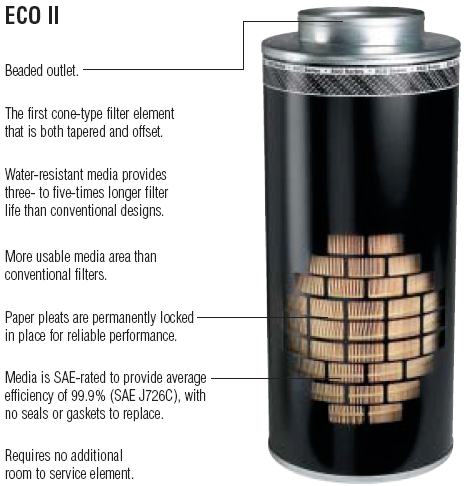

The ECO II was designed to provide lower element cost on an under hood truck application due to the 2-piece design. The Inlet Adapotoer is a separate piece that stays on the truck and is purchased separately.


The ECO II used without the Inlet Adapter has become the standard in the Generator Set market. Air Flow is outside-in with water drain holes around the perimeter.

Part No. Dimensions (In.) Air Flow (CFM) Weight
(Diameter)
A
(Length)
B
(Outlet)
C
(Inlet)
D
E
4" w.g.
6" w.g.
8" w.g.
lbs
kg
071338001 9.75 24 6 No Inlet Adapter 9.0 750 940 1100 12.5 5.7
6 820 1040 1220 15.5 7.1
071338002 11 24 7 No Inlet Adapter 9.0 920 1180 1380 16.2 7.4
7 1200 1460 1700 19.2 8.8
071338003 13.5 24 7 No Inlet Adapter 9.0 1120 1390 1600 19.0 8.6
7 1370 1730 1950 22.0 10.0
071338004 13.5 18 7 No Inlet Adapter 9.0 1140 1440 1600 16.9 7.7
7 1350 1700 1800 19.9 9.1
071338005 13.5 15 7 No Inlet Adapter 7.5 1140 1440 1600 14.0 6.3
7 1350 1700 1800 17.0 7.7
071338006 13.5 24 7 No Inlet Adapter 9.0 1080 1370 1590 19.36 8.78
7 1300 1710 1780 22.3 10.1
071338007 11 24 7 No Inlet Adapter 11.5 920 1190 1390 14.51 6.5
7 1200 1460 1700 17.45 7.9
071338008 7.75 18 6 No Inlet Adapter 9.0 710 930 1070 9.13 4.14
6 920 1030 1190 12.1 5.5
071338009 13.5 24 7 No Inlet Adapter   1210 1600 1910 9.00 5.5
