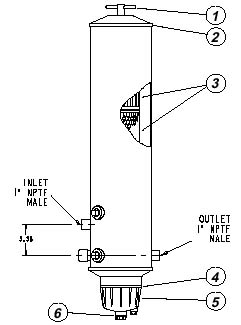

Model 812 Assembly View/Parts Breakout. The circled number corresponds to the part(s) on the right.
Item
Part No.
Description
1
RK22682
T-Handle / Lid Assembly
2
RK22609
Lid Gasket
3
RK22610 (1)
Element Kit. (1) 8021, (1) 8022 and Includes Lid Gasket
4
RK11036
Bowl O-ring
5
RK16017-01
Bowl Assembly
6
RK30058
Drain Valve Assembly
RK21069 (2)
Water Probe (Option)
RK30880
Electronic Water Probe (Option)
7
22586
812 Installation Instructions
(1) RK22610 Element Kit. Includes (1) 40 Micron Filter (upper position)
and (1) Coalescing Filter (lower position).
(2) Must be used with a Water Detection Module.
See the Accessories Section.
