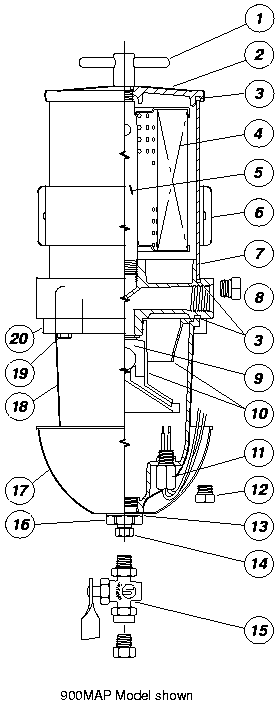

Marine Turbine Series 900MA Assembly View/Parts Breakout.  The circled number corresponds to the part(s) on the right




Item

Part No.

Description

1

RK11888

T-Handle

11350

T-Handle O-Ring

2

RK11005B

Lid

RK11005B–02

Lid with Vent Port and Plug Kit (not shown)

3

11007

Square--cut Gasket (Lid & Bowl ring)

4

2040SMOR

2 Micron Element with Seals

2040TMOR

10 Micron Element with Seals

2040PMOR

30 Micron Element with Seals

5

RK19001

Return Tube (w/ tapered pipe body--end threads)

RK19474

Return Tube (w/ straight body--end threads)

6

RK11815–101

Body Clamp Bracket

7

RK19002

Outer Cylinder

8

RK11–1679

Plastic Body Plug

9

RK11028B

Check Ball and Seal

10

RK11026D

Turbine Centrifuge / Conical Baffle

11

RK21069 1

Water Probe Assembly

12

RK20022

Metal Water Probe Port Plug

13

RK11341

Bowl Drain Gasket #11041 (and #11340)

14

RK12041

Bowl Plug, 1/4'' NPT

15

RK19492

Diesel Marine Shut--off Valve Kit.

16

11040

Bowl Drain Fitting

17

RK11868 2

Heat Deflector Shield (MA)

18

RK11–1606–1

Clear Bowl with Water Probe Port

RK11734

Metal Bowl (MAM --not shown)

RK11734–01

Metal Bowl w/ 1/4''NPT Drain & Water Probe Port

19

RK11542

Hex/Washer Head Capscrew, 1/4''--20 x 1'' (4)

20

RK11037A

Bowl Ring

21

RK11–1404

Seal Service Kit (all models-- not shown)

19466

IInstallation Instructions, 900/1000MA

1 For diesel service only. Must be used with a Water Detection Kit.
2 For replacement only. The Coast Guard does not accept 'FG' units converted to 'MA' configurations.
